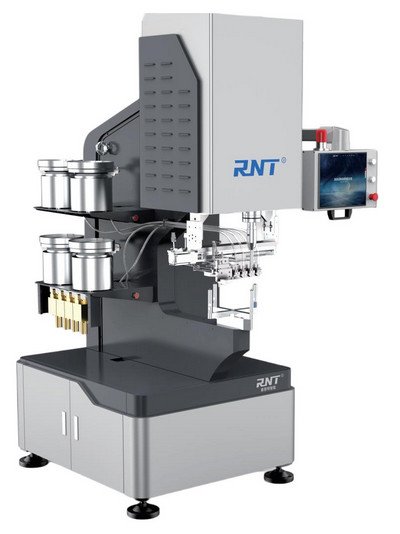

S824-4E
The S824-4E stands out with its fully electric servo-driven system, delivering clean, oil-free operation and unmatched pressure stability. Equipped with real-time pressure monitoring and detailed curve visualization, it is specifically designed to meet the strict demands of high-precision component assembling.
The S824-4E servo electric insertion machine integrate safety, precision, and efficiency. Benefit from its 2-80KN force range, 200mm of stroke length , and 610mm throat depth , it is suitable for large workpieces. Powered by a 5.5KW motor, it supports various fasteners, including M6 standoffs, M8 studs, and M10 nuts. Speed up to 1800 strokes per hour. Advanced features like a force self-learning function, ±0.01mm positioning accuracy when pressing, and real-time pressure monitoring ensure precise and stable performance for crucial applications.
Reliable Safety System
The hand protect function engage since the machine was started up. Support 2 working mode to allow no matter metal or plastic part processing. Support 2 respond mode when alarm was triggered. One is stop immediately one is go up. Avoid labor injury effectively.
Precision Meets Efficiency
RNT’s servo insertion machine is driven by high precision servo motor and cylinder, which provide precise process control, high insertion efficiency, and consistent output. Bring you the advantage of both better precision and efficiency.
Smooth Auto Feed Tooling
The cost effective optional auto feed system allow up to 4 different types of fastener auto feeding. Integrated with auto change turret, the machine can reduce multiple workpiece handling and boost efficiency.
Intelligent Software
The patented insertion logic software provide intuitive guide of
-Insertion mapping to avoid wronginsertion;
-Fastener database for easy setup;
-lnsertion graphic to record force and position for each insertion;
Ready to integrate with MES system.
Wide Range Application
The servo drive system avoid the need for traditional mechanical stop to protect the workpiece, operator can set insertion force or depth in software. The machine provide 2 sophisticated control mode.
-For force control, the repeatability is 1% with upto 80kN force.
-For position control, the repeatability is ±0.01mmThese make italso suitable for processing soft material such as aluminum,composites,fiberglass, plastics, and PCBs.
Sustainability
Compare to traditional pneumatic and hydraulic machine, the servo insertion machine run without oil, more quiet, and lower energy consumption. Providea more eco friendly workshop.
Video show of S824-4e
Technical Parameter
| Model | S518-1E | S824-2E | S824-4E |
| Auto Feed Tooling | 1 set | 2 sets | 4 sets |
| Force Range | 2-50KN | 2-80KN | 2-80KN |
| Throat Depth | 457mm(18″) | 610mm(24″) | 610mm(24″) |
| Throat Height | 555mm(21.85″) | 555mm(21.85″) | 555mm(21.85″) |
| Stroke Distance | 0-200mm | ||
| Fastener Range | Self clinching nut below M10, standoff below M8, screw below M6 | ||
| Power | maximum 5.5kw only when inserting | ||
| Repeatability | 1% of force setting, ±0.01mm of position setting | ||
| Electrical | 380V 3phase 4wire | ||
| Weight | 2425lbs (1100kg) | 2755lbs (1250kgs) | 2976lbs (1350kgs) |
| Footprint | 53″W x 39″L x 88″H (1330 x 980 x 2225mm) | 61″W x 39″L x 88″H (1540 x 980 x 2225mm) | 61″W x 39″L x 88″H (1540 x 980 x 2225mm) |
